Dry Powder Mixer Dry Mortar Plant Industrial Cement Mix Production Machine

Brand Name : MG

Model Number : MGDM-3.7

Certification : CE,COC,ISO

Place of Origin : Henan province, Henan

MOQ : 1 set

Price : USD 50000-70000

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100set/month

Packaging Details : Standard oversea package

Dimension(l*w*h) : Depending

Application : Dry Mortar Production Line,Dry Mortar Mixing

Voltage : 220V or Customized

Warranty : 12 months

Packaging : High Standard Packaging Guarantee

Capacity : 10-120t/h

Mixing time : 3-5 Minutes

Batching and weighting : Automatic Feeding

Silo : as customer's choice

Sand dryer : depends

Contact Now

Dry Powder Mixer Dry Mortar Plant Industrial Cement Mix Production Machine

Production description of Dry Mortar Plant:

MG Full Automatic Dry Mortar Plant is based on the latest design concept in Europe, this production adopts the advanced PLC computer auto-control system, which production capacity can reach 10-70 tons per hour depend on the system configuration. Normally the full automatic dry mortar plant should consists of raw material storage system, conveying and weighting system, mixing system, packing system, air compressor system, dust collecting, PLC control system, etc..

Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.

Detail configuration and usage of Dry Mortar Plant:

No.	Product Name	Model	Function and usage
1	Bucket elevator	Chain type lifting capacity: 15-100T/H Belt type lifting capacity: 10-35T/H	An high efficient vertical lifting device to carry Granular material from ground to silos top or premix hopper, powder material usually feeding by pump truck.
2	Detachable Storage System	Volume: 60T, 100T 150T, etc.	To store dry raw material powder such as cement, sand, fly ash, caco3, slag etc.
3	Screw Conveyor	Size: Φ165/Φ219/Φ273*6000m	An horizontal conveying device to carry the materials to the weighting hopper.
4	Weighting System	Volume: 2m3/3m3/4m3/6m3	Automatic weighting different materials device
5	Twin Shaft Agravic Mixer	Mixing time:3-5min/batch Mixing capacity: 2m3/3m3/4m3/6m3/8m3/10m3	To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily.
6	Finished product silo	Volume: 2m3/3m3/4m3/6m3	To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly.
7	Automatic weighing packaging machine	Impeller valve type Pneumatic valve type Packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg.	To pack the end product and automatically sewing, it can realize automatically weighing and packaging.
8	PLC Control cabinet	PLC touchable screen or computer operation.	To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula.
9	Air compressor	Common type or screw compressor type	Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc.

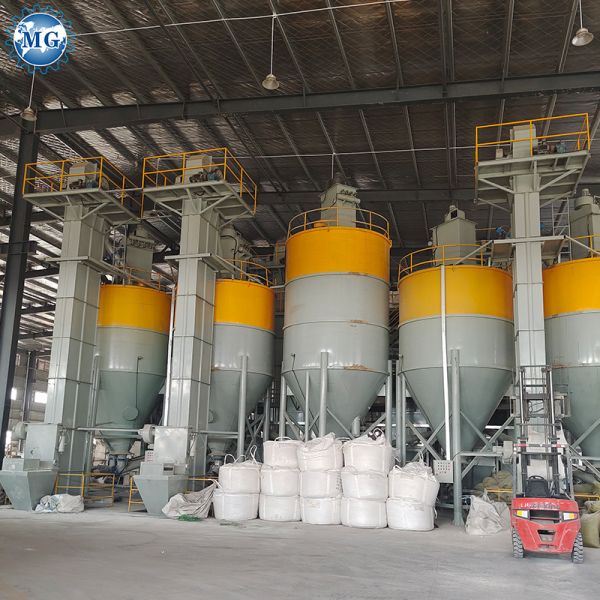

MG dry Mortar Plant details and site:
