Automatic Tile Adhesive Machine Manufacturing Plant 220V Dry Mortar Premix Hopper

Customized Voltage Tower type Automatic Tile Adhesive Manufacturing Plant with Palletizing System

The advantages of our Automatic dry mortar mixing equipment.

1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching,automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
3. The use of a biaxial mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.

Working principle of Automatic Dry Mortar Plant:

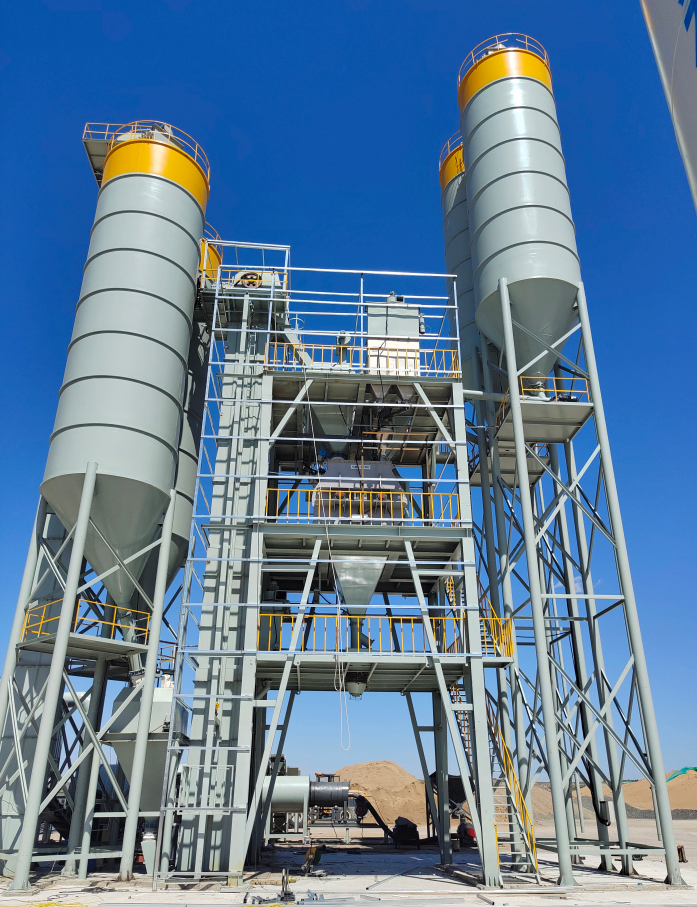

The production line abandons the traditional ground batching form and adopts the top layout mode of the tower layout, which greatly reduces the material mix delivery time, improves production efficiency, and reduces production costs.

According to the production requirements, the mixing system can use 4-10m3 large-capacity gravity-free double-shaft high-efficiency mixer with short mixing time and high mixing precision. The complete set of equipment is controlled by PLC automatic control system in real time, with high degree of automation management and friendly working environment.

Technical parameters of Automatic Dry Mortar Plant:

Machine detaiils of Automatic Dry Mortar Plant:

Machine basic parts: Raw material storage silos, twin shift agravic mixer, dust collector, conveyor system and finished product hopper and so on.

Machine Features of Automatic Dry Mortar Plant:

1) Automatic intelligent control system:

• Central computer centralized intelligent management, all data can achieve the record, statistics, storage, printing functions;
• Human based process control panel to make it easy to operation;
• Special intelligent weighting and batching instrument, automatically calculate and correct weighing error;

2. Automatic Batching System:

• High measurement accuracy, additives can be controlled by frequency converter feeding.
• The metering silo is equipped with automatic advance vibration unloading function as required to minimize the discharge residual.

3) Automatic Delivery Palletizing System:

• Automatic Conveying and Stacking System can automatically realize the transportation and turning of packaging materials, ash removal, shaping, code spraying, heat sealing, stacking, winding and laminating, etc.
• Stacking robot is the product of organic combination of mechanical and programmable PLC, which provides higher production efficiency for modern automatic production and replaces repetitive and heavy manual labor.

4) Pneumatic Conveying:

• This system can adopts the dense phase intermittent batch transport or dilute phase continuous transport as the production requirement.
• It can be used to transport various powder materials such as emulsion powder powder, cellulose and multi-functional additives, fine particles and granule such as calcium powder, glass beads and fine sand.
• High conveying accuracy, small residue without mechanical wear, low energy consumption, without original properties of materials damaged, support long-distance continuous or intermittent transport (80-500 meters).

Application of MG Automatic Dry Mortar Plant:

Dry Mortar Mixing Equipment can produce the following dry mortars:

Further details please contact freely, your satisfaction is the greatest supports for us !!!
