30T/H Cement Lime Powder Dry Mortar Production Line

Zhengzhou MG Industrial Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

30T/H Cement Lime Powder Dry Mortar Production Line

Brand Name : MG

Model Number : MG-3.7

Certification : CE, ISO, SGS,BV

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 20-25 working days from paid advace payment

Packaging Details : Standard seaworthy packing-Wooden box packing and bubble wrap packing

Product name : Automatic dry mortar plant

Advantage : Factory direct quality better after sales services guarantee

Packing method : Automatic weighing and packing

Installation service : We send engineer to oversea for guiding installation

Motor : China famous brand CE Certificate motor

After-sales services : Field maintenance,Video technical support

Control system : PLC touch screen control system

Raw material : Cement, Sand, Flyash, Calcium carbonate, Lime powder and additives

Color : Grey color or customized

Workers required : 3-4 workers

Contact Now

China New Product Latest Technology Full Automatic Dry Mortar Plant

Export To Malaysia Hot Sale

1. Decription of MG automatic dry mortar plant:

The main components of this production line: raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. the main control system administrate the production order based on fixed formula ratio, thus the production line will dosing the coarse materials from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a shortperiod(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, ther down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transfered to finished mortar area, ready fo sale.

2, Configuration of MG automatic dry mortar plant:

Raw material silos : cement,sand, caco3a and some additives

Feeding screw: the speed can by controled by frequency converter

Quantity dosing system: auto-dosing all raw material accurately

Mixing system: double-shaft paddle mixer ,plough mixer ,riboon mixer or others

Packaging machine: valve-bag packing machine,open-mouth bag packing mahcine and others

Dust collecting system: installed at the position of feeding port, packing port

Automation cotrol system: PLC+TOUCH SCREEN

30T/H Cement Lime Powder Dry Mortar Production Line

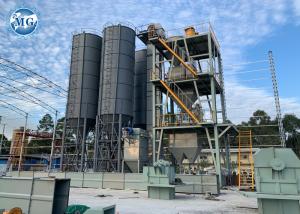

3. MG full automatic dry mortar plant working site:
30T/H Cement Lime Powder Dry Mortar Production Line
4. Flow chart drawing of working principle MG automatic dry mortar plant:
30T/H Cement Lime Powder Dry Mortar Production Line

5. Certificate of our factory

30T/H Cement Lime Powder Dry Mortar Production Line

6. Full automatic dry mortar plant installed in foreign countries:

30T/H Cement Lime Powder Dry Mortar Production Line

7. About Us:

30T/H Cement Lime Powder Dry Mortar Production Line

30T/H Cement Lime Powder Dry Mortar Production Line

8. Packing & Shipment of MG full automatic dry mortar plant:

30T/H Cement Lime Powder Dry Mortar Production Line

9. Why choose us:

We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):

1. Over 20 years experience in this dry mortar production line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;

2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.

3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.

We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.

10. FAQ:

1, How about the investment of this project?

A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many people required to operate this dry mortar plant?

A: Usually 2-4 workers are enogh to operate this dry mortar plant.

4, What equipment and service you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.

5, What is the area required for this dry mortar plant?

A: According to the capacity of the dry mortar plant, the area required 300-100 m2.

6, What is the total power consumption (KW) of this dry mortar plant?

A: It is 20-80W based on the capacity of the dry mortar plant.

7, What is the capacity of your dry mortar plant?

A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.

8, How long is the guarantee period?

A: 12 months, within this period, we provide you spare parts and services for free.

9, Can you install the dry mortar plant in my country?

A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.

If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
